316 Stainless Steel Coil Introduction
Product Overview

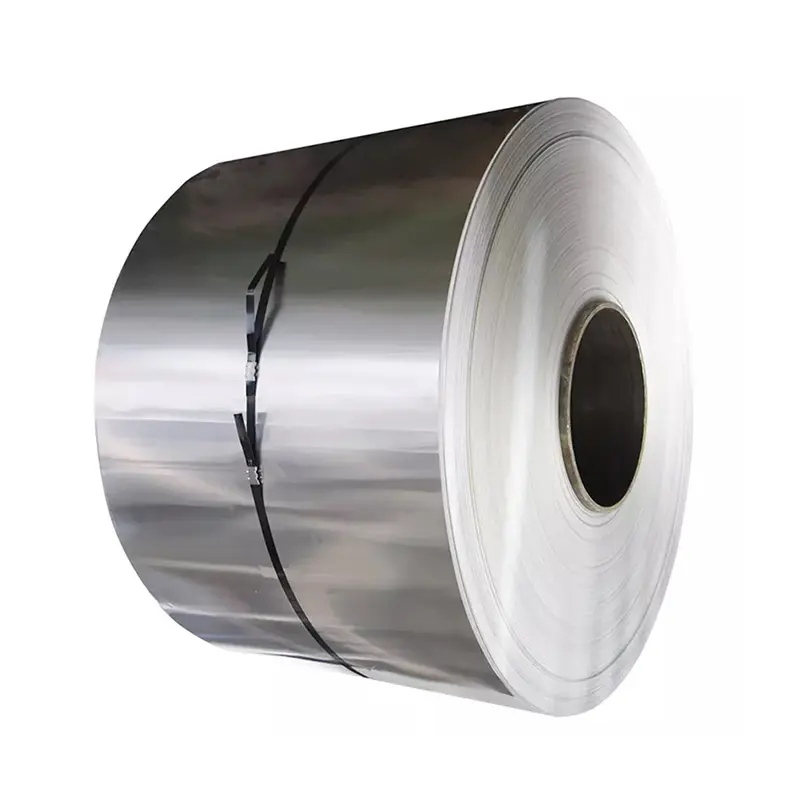

316 Stainless Steel Coil
316 stainless steel coil is an ideal choice in the stainless steel industry for a number of key reasons. Grade 316 is the standard molybdenum-bearing austenitic stainless steel, which has extremely strong resistance to pitting and crevice corrosion in chloride environments, so it is more suitable for scenarios requiring higher corrosion resistance. For example, in the marine engineering field, 316 stainless steel is often used to manufacture ship parts, subsea pipelines, offshore platforms and other facilities; in the chemical industry, it is widely used to manufacture equipment such as storage tanks, reactors and pipelines; in addition, in the medical field, with its excellent biocompatibility and corrosion resistance, 316 stainless steel is also widely used to manufacture medical devices and implants.
Product Parameters
Item | Standard Specification |
Product Name | 316 Stainless Steel Coil |
Product Type | Steel Coil |
Thickness | 2.5mm – 10.0mm |
Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc. |
Width | 610mm – 2000mm |
Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. |
Surface Finish | BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc. |
Production Technology | Hot Rolling, Cold Rolling |
Edge Processing | Edging, Trimming |
Certificate | ISO, SGS, BV, etc. |
Typical Applications
Widely used in high temperature and electrical industry, medical equipment manufacturing, construction field, chemical industry, food industry, agriculture and ship parts, food and beverage packaging, kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc.
Chemical Composition (Mass Fraction)
Element | Content Standard | Element | Content Standard |
C (Carbon) | ≤ 0.03 | Ni (Nickel) | 10.0～14.0 |
Si (Silicon) | ≤ 0.75 | S (Sulfur) | ≤ 0.03 |
Mn (Manganese) | ≤ 2.0 | P (Phosphorus) | ≤ 0.045 |
Cr (Chromium) | 16.0～18.0 | Mo (Molybdenum) | 2.0～3.0 |
Mechanical Properties
Item | Standard Requirement |
Tensile Strength Kb (MPa) | ≥ 480 |
Yield Strength σ0.2 (MPa) | ≥ 177 |
Elongation D5 (%) | ≥ 40 |
Hardness | ≤ 187HB; ≤ 90HRB; ≤ 200HV |
Physical Performance
Item | Standard Value |
Density (g/cm³) | 7.99 |
Modulus of Elasticity (Gpa) | 193 |
Coefficient of Thermal Expansion (10⁻⁶/°C) | 16.0 |
Coefficient of Thermal Conductivity (W/m·K) | 16.2 |
Resistivity (ΜΩ·cm) | 74 |
Service & Support
Customizable sizes, surface finishes and processing services are available
Stable supply, fast delivery and a complete quality inspection system
Relevant certification certificates and third-party inspection reports can be provided
Support wholesale, export, OEM and ODM cooperation
