High product quality, passed ISO9001 quality management system certification and CE certification.
Strong production capacity, complete processing plant equipment, and strict quality control system.

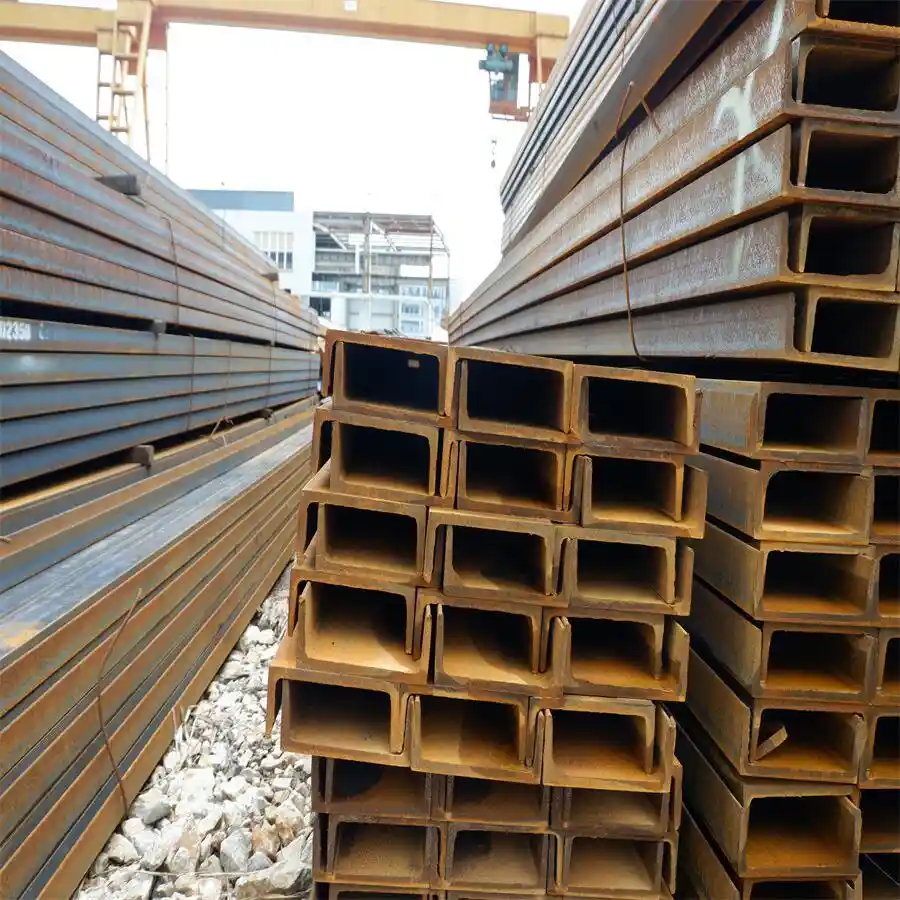

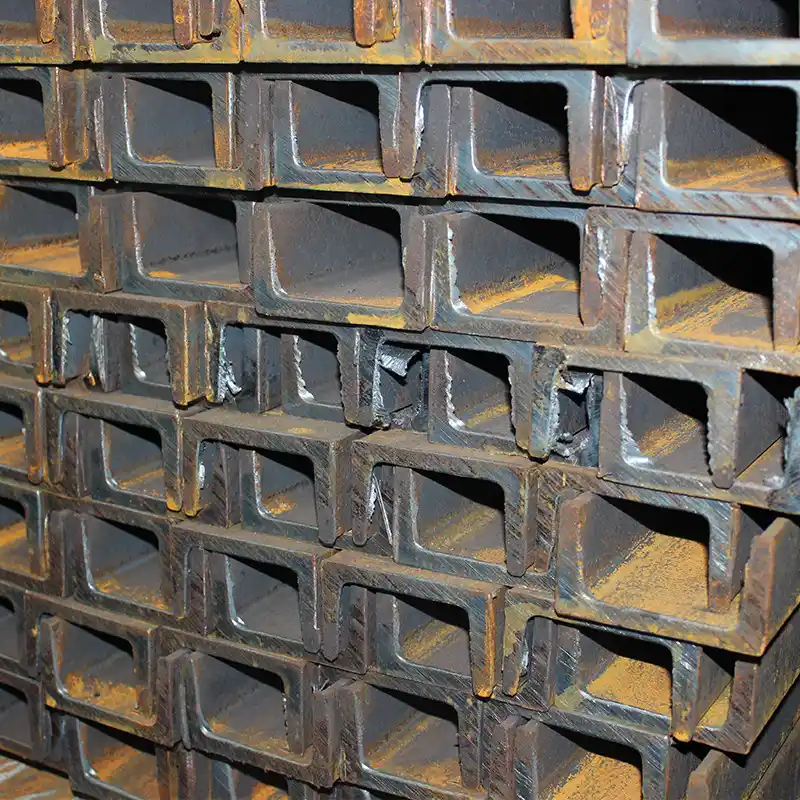

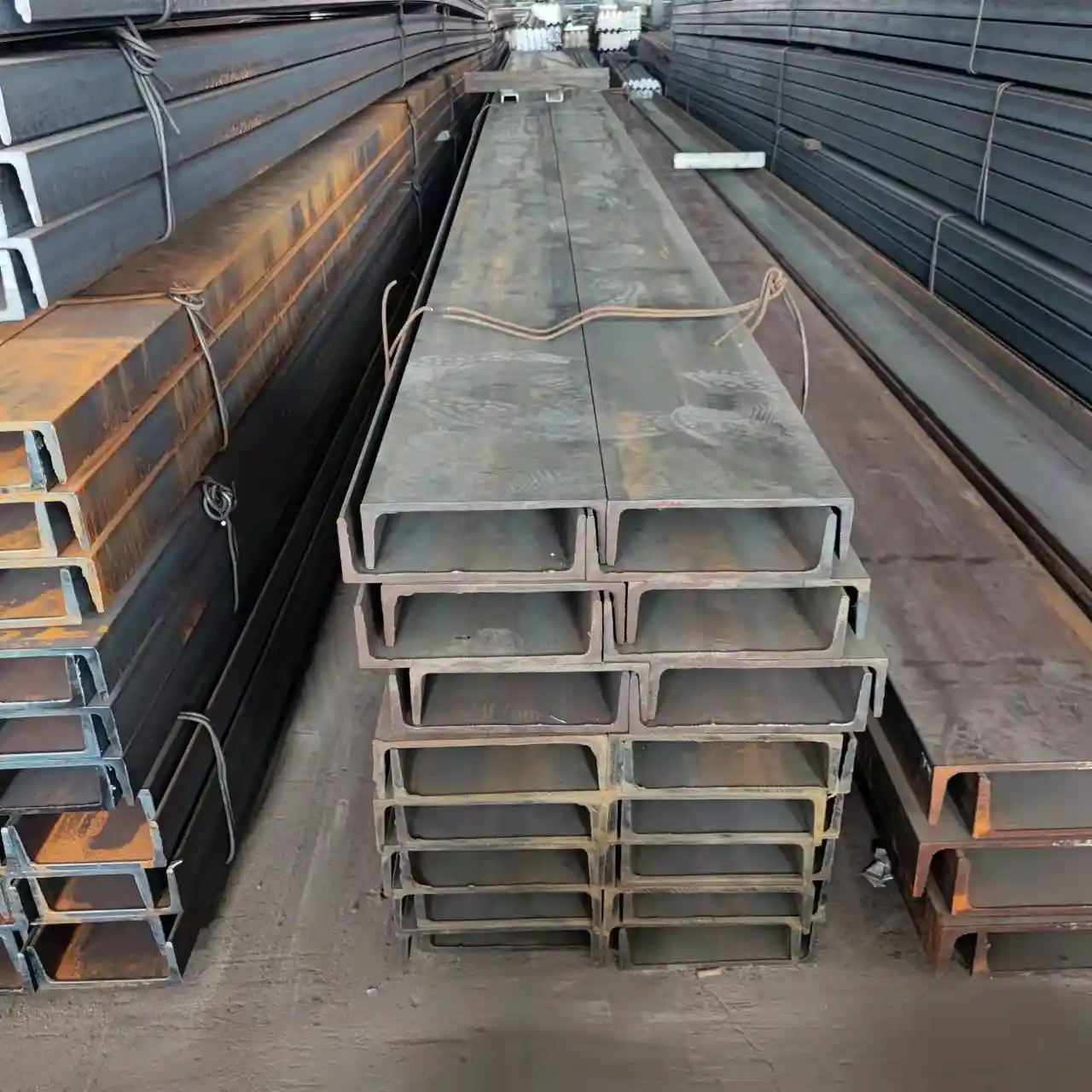

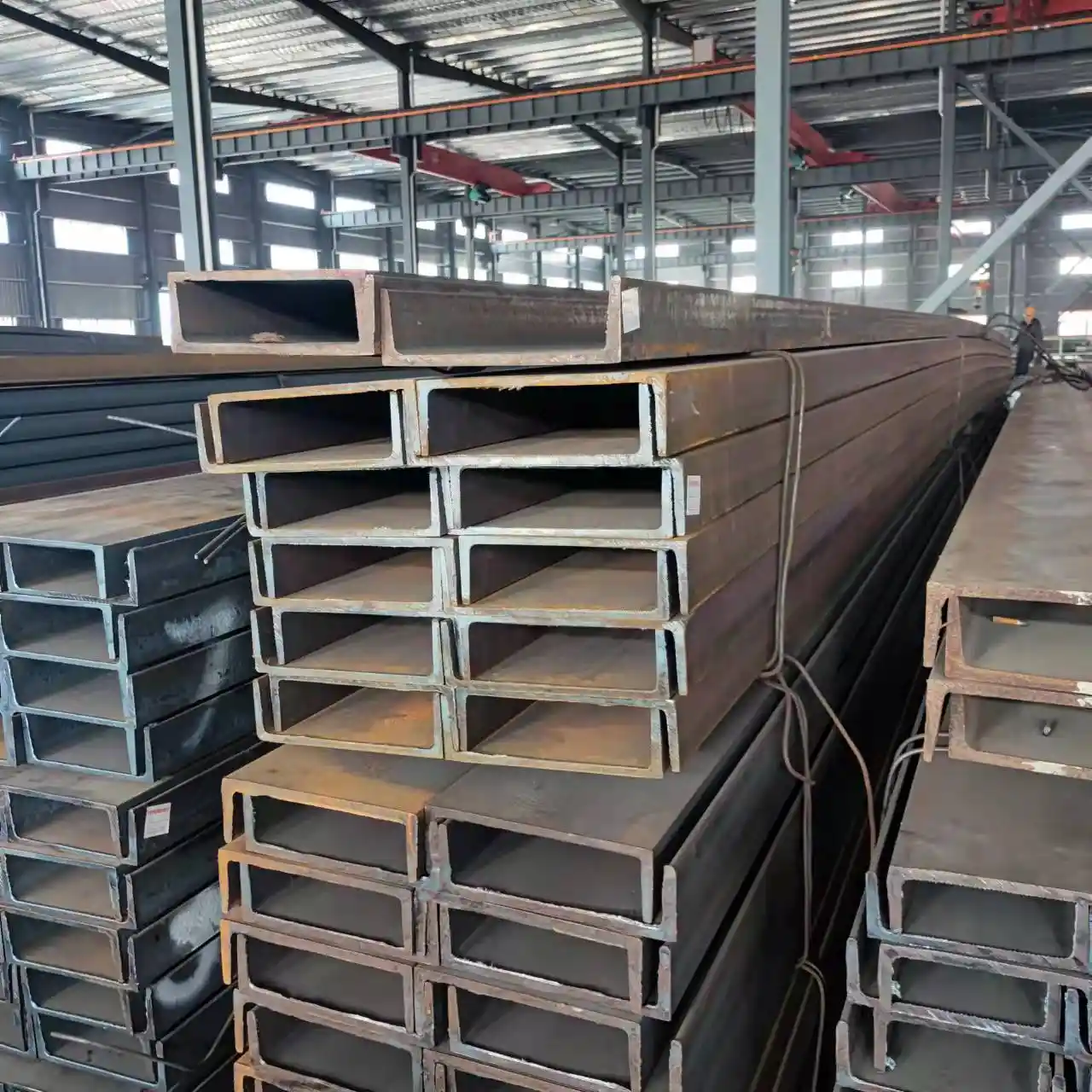

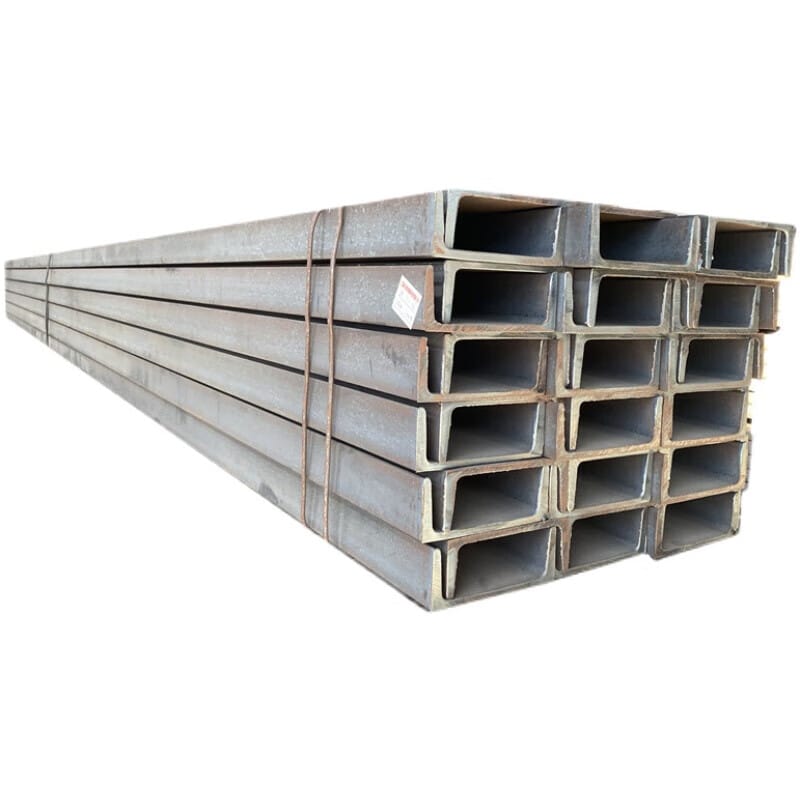

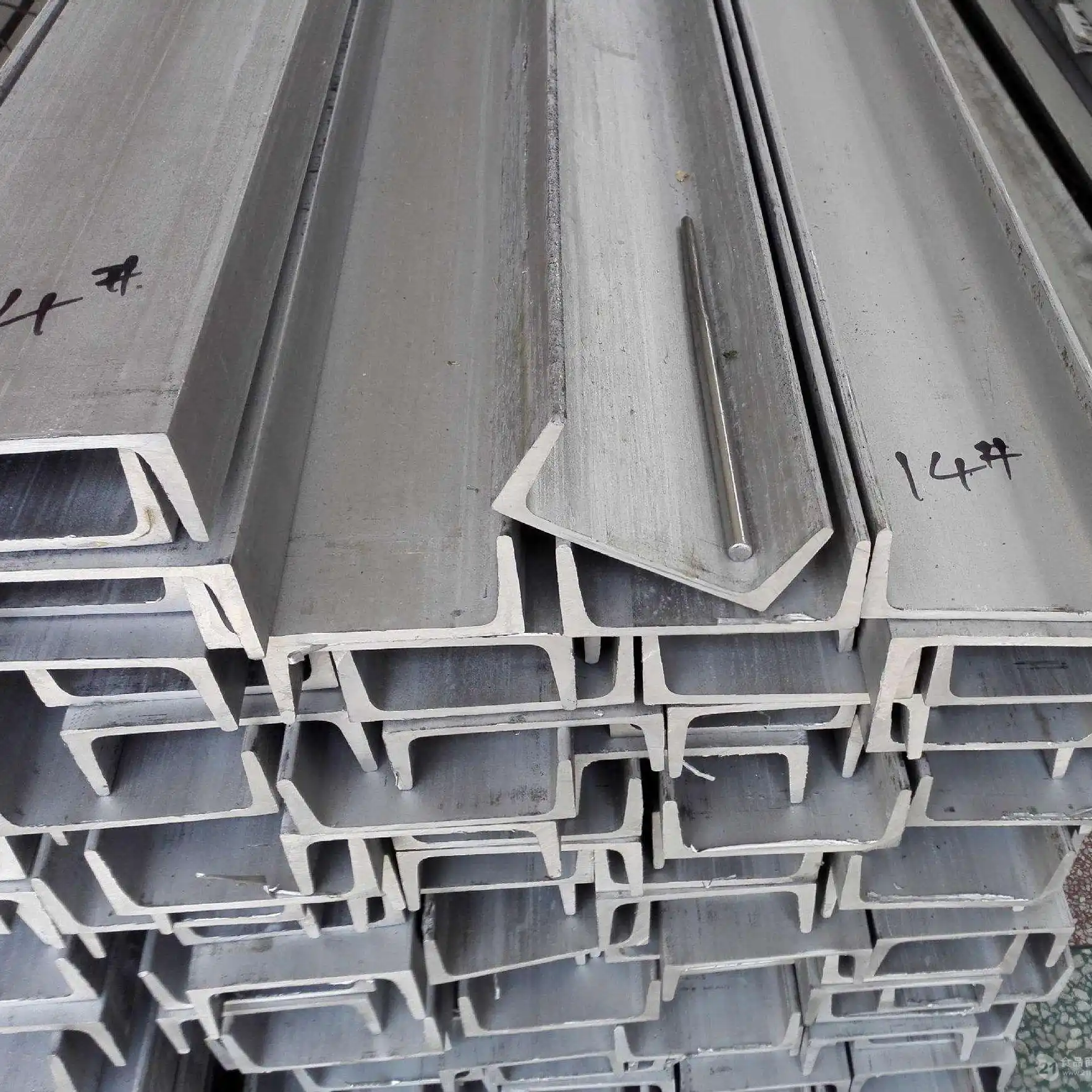

Channel steel features a unique sloped flange design (or parallel flange in some series), providing superior support in bending and shear. It is typically used as beams, columns, frames, and purlins in steel structures.
We supply both UPE (parallel flange) and UPN (sloped flange) types.
| Parameter | Details |
|---|---|
| Standard | ASTM A36, A572; JIS G3192; EN 10025; GB/T 706 |
| Material Grade | Q235B, Q355B, SS400, S235JR, S275JR, A36 |
| Web Height (h) | 50mm – 400mm (Custom sizes available) |
| Flange Width (b) | 37mm – 100mm |
| Web Thickness (t) | 4.5mm – 14.5mm |
| Length | 6m, 9m, 12m, or as per customer request |
| Surface Treatment | Black, Galvanized (Hot-dipped), Painted, Oiled |
Construction: Roof trusses, industrial building frames, supports.
Manufacturing: Machine bases, conveyor rails, automotive frames.
Infrastructure: Bridge girders, tunnel supports, shipbuilding.
